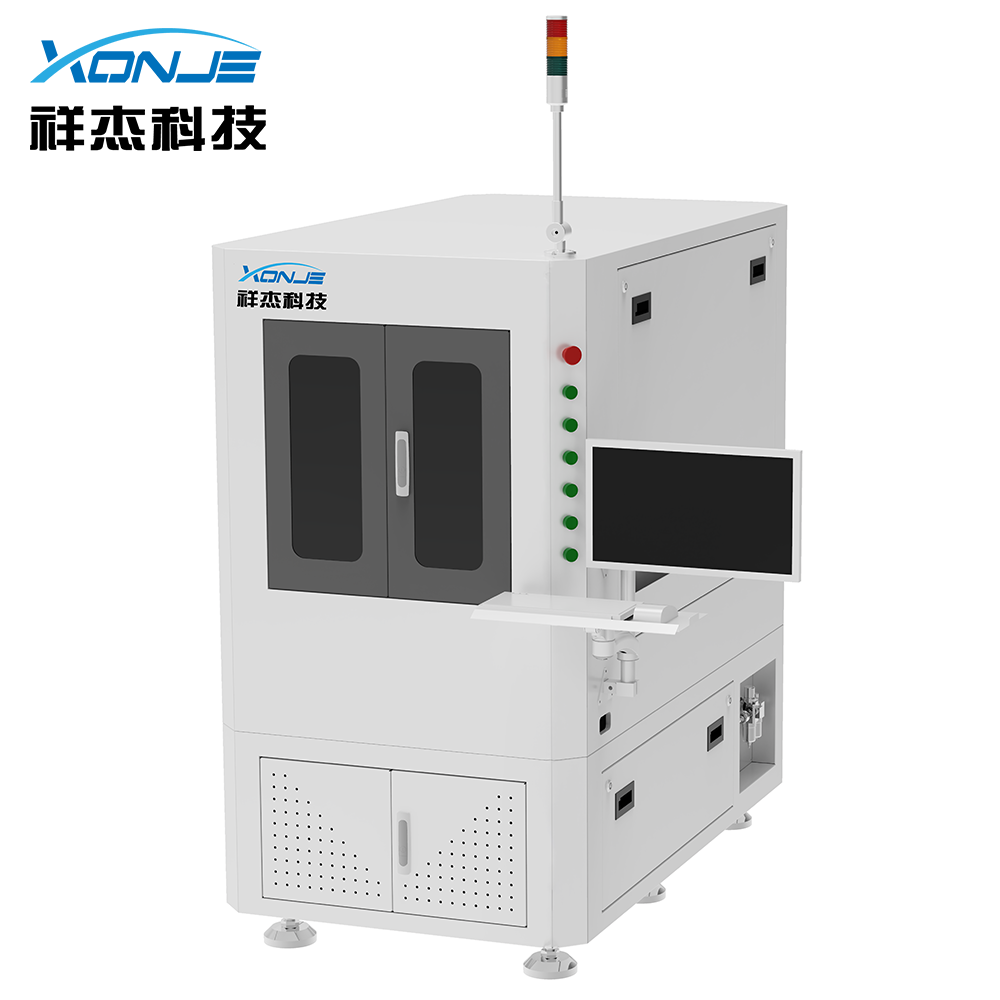

Features
1.Equipped with 15W 355mn ultraviolet laser with high peak power, stable power and low attenuation, no need to worry about the influence of power attenuation on cutting quality and speed;
2.Integrate CTI high-precision scanning galvanometer and Yokogawa high-precision linear motor platform, with high operating accuracy;
3. The professional cutting software can directly import the DXF graphics made by CAD, and cut according to the input graphics accurately to bring precise and efficient cutting;
4. After the optimized design of the optical path part, the speed and effect can be optimized under the same power, and efficient dust-proof treatment can be carried out at the same time, which can effectively reduce the maintenance cycle of equipment shutdown;
5. The equipment adopts a marble anti-vibration platform, the overall structure is stable and firm, and the integrated closed structure provides a guarantee for high-speed, high-precision, and high-yield production;
The software is compatible with all types of functions, simple operation, easy to learn and understand, and you can learn basic operations in a short time.
6.Suitable for SMT production line, mainly used for cutting FPC, PCB, fingerprint module, camera module, TYPE-C interface and all kinds of precision PCB/FPC boards with stress requirements in the production of 3C industry.
Technical parameter1
|
切割幅面Cutting area |
350*350mm |
|
最大切割產品尺寸Maximum cutting product size |
L350*W350*T1.0mm |
|
振鏡掃描范圍Scanning range of galvanometer |
42×42mm |
|
掃描速度Scan speed |
≤5000mm/s |
|
X、Y定位精度(X, Y positioning accuracy) |
≤±3um |
|
X、Y重復定位精度(X, Y repeat positioning accuracy) |
≤±2um |
|
平臺移動速度 Platform moving speed |
≤1000mm/s |
|
CCD 定位精度 CCD positioning accuracy |
±3um @130萬像素 (±3um @1.3 million pixels) |
|
最小切割線寬 Minimum cutting line width |
≤30um |
|
最大切割厚度 Maximum cutting thickness |
1.0mm(建議) 1.0mm (recommended) |
|
綜合切割精度 Comprehensive cutting accuracy |
≤±30um |
|
設備外形尺寸 Equipment dimensions |
L1100*W1200*H1650mm |
|
設備重量equipment weight |
1200kg |
部件part
型號model
特點Features
激光器Laser
15W紫外固體激光器
15W UV solid-state laser
功率穩定，衰減小
Stable power, low attenuation
直線電機平臺Linear motor platform
祥杰定制
Xiangjie customization
高速穩定
High speed and stability
4軸運動控制器4-axis motion controller
GTS-400-PV-VB-PCI
定制custom made
工控機Industrial PC
4U機箱Chassis/電源power 300W/H61主板motherboard/i5-2400/4G/500G
專用工控機
Dedicated industrial computer
掃描振鏡Scanning galvanometer
CTI
美國進口
Import from America
切割軟件Cutting software
自主開發
Independent development
精密切割專用軟件，集成視覺自動定位
Special software for precision cutting, integrated vision automatic positioning
大理石平臺Marble platform
章丘石
Marble from Zhangqiu
專利設計
Patent design
除塵機Dust Collector
4KW 380V 3P 4KW
專為激光精密切割定制
Customized for laser precision cutting
治具fixture
定制專用治具
Customized special fixture
依客戶產品定制
Customized according to customer products
冷水機Chiller
/
精準控溫
Precise temperature control
