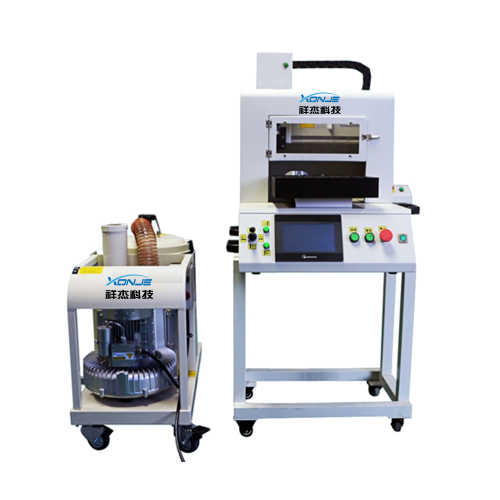

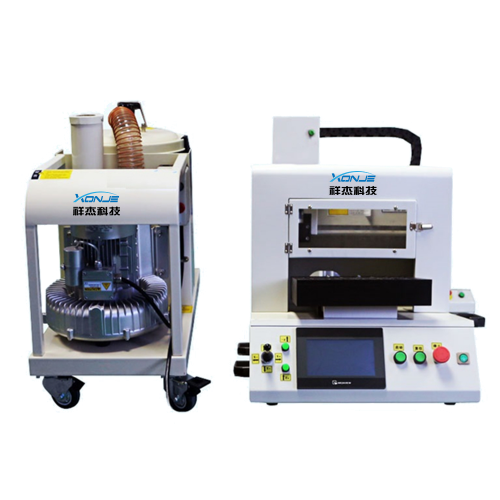

Features

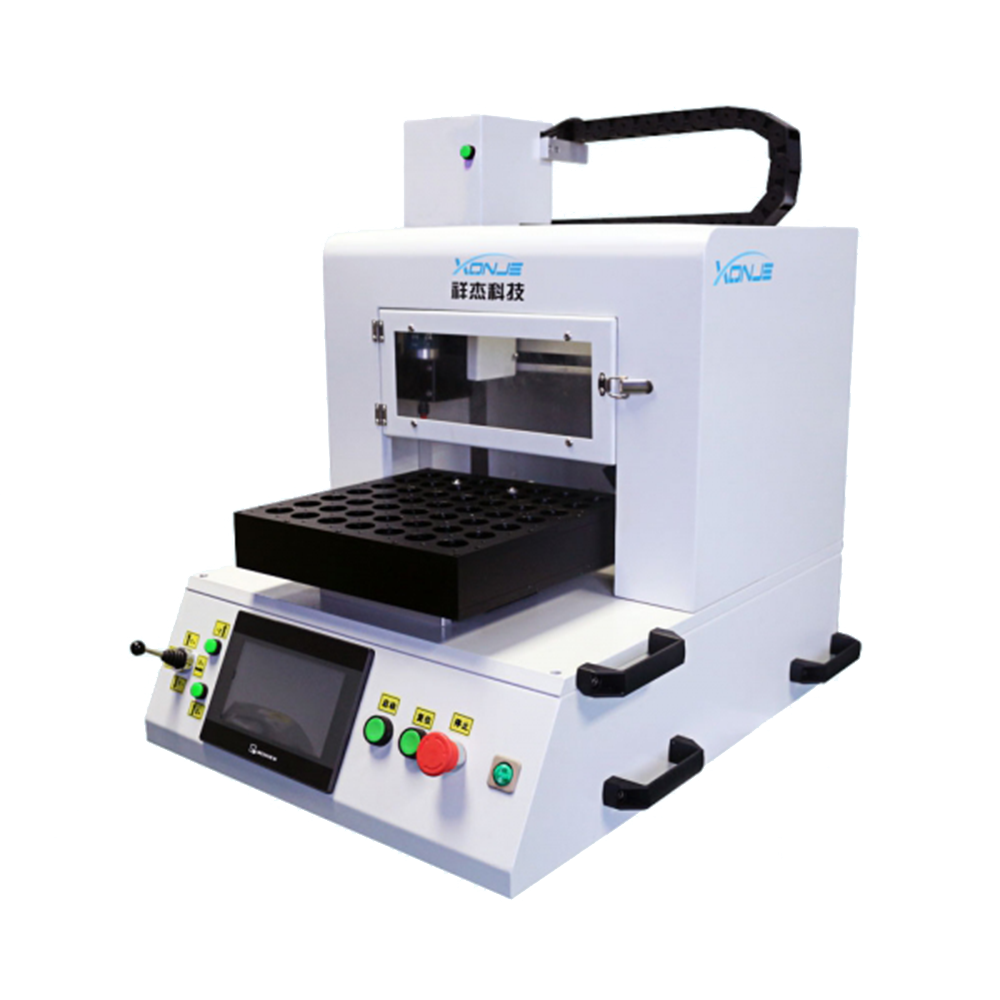

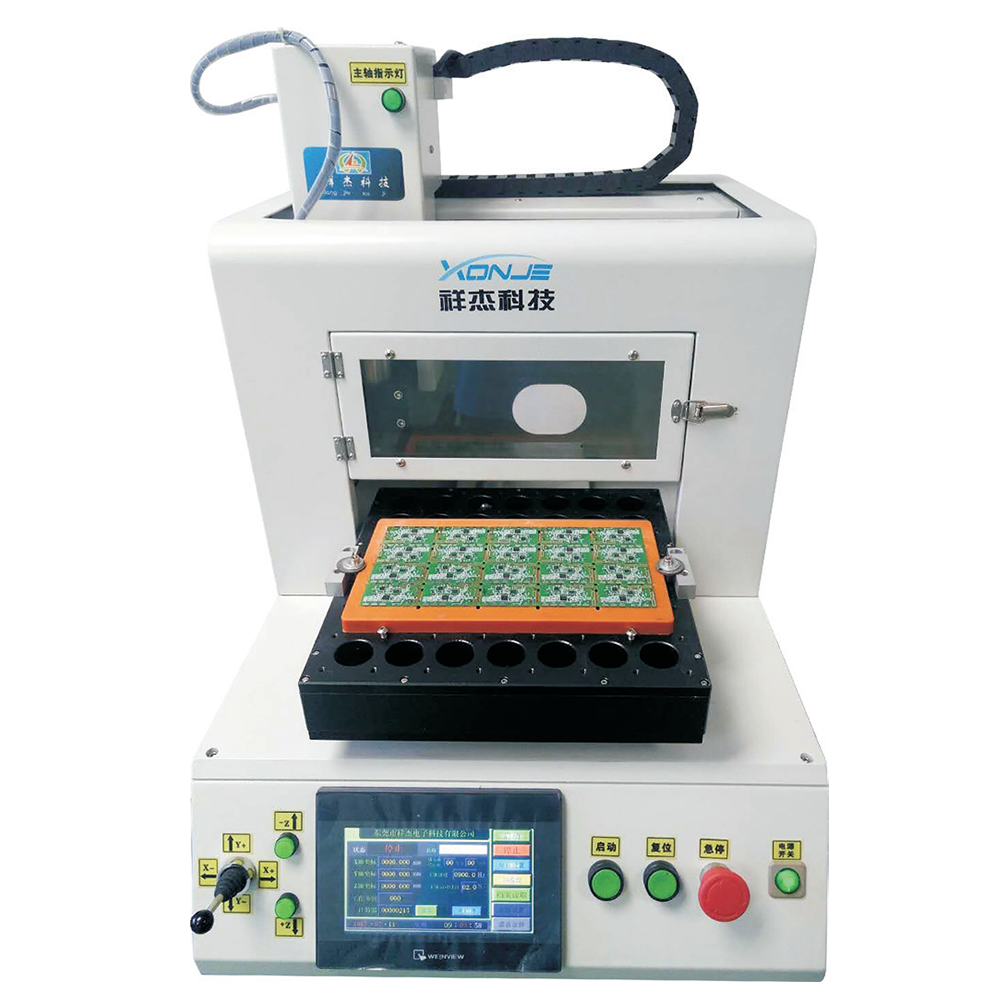

1 .Desktop single table cutting machine, speed up to 100mm/s, positioning speed 500mm/s;
2.It can cut continuously without interruption during loading and unloading;
3. The high-quality shaft system enables the system to accelerate and decelerate faster, reduce the synchronization time, improve productivity, and maintain high precision;
4. Use high-quality hardware to ensure high rigidity and high performance;
5. All lead screws are covered to prevent dust and dirt from entering, thereby improving the life and performance of the shaft.
Technical parameter
驅動系統馬達
Drive system motor
伺服/步進馬達
Servo / stepper motor
主軸轉速Spindle speed
60000r/min
切割性能Cutting performance
0-100mm/sec
驅動系統重復精度Repetition accuracy of drive system
土 0. 02mm
切割速度Cutting speed
最大100mm/S取決于線路板材料和切割質量
The maximum 100mm / s depends on the
circuit board material and cutting quality
分辨率resolving power
± 0. 01mm
配置configure
X、Y、Z三軸，行程：300*300*80mm,行程也可定做(X,Y,Z three-axis,stroke:300*300*80mm,
and the travel can also be customized)
重復精度Repetition accuracy
< 0. 1mm,對直線和曲線的輪廓（< 0.1mm, contour of straight line and curve）

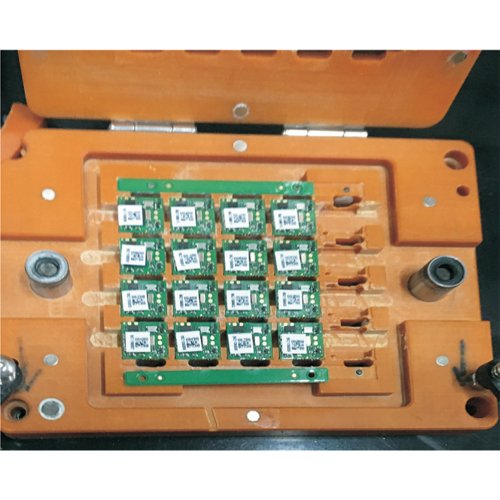

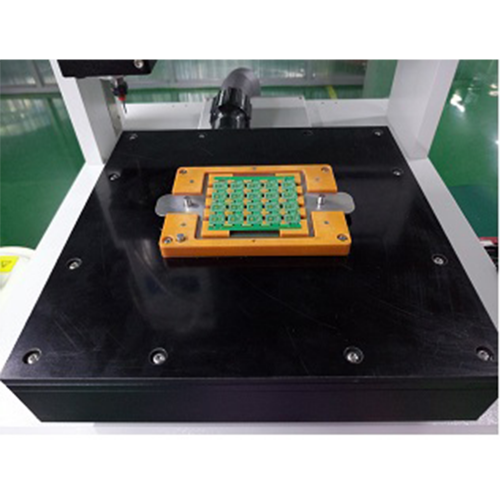

線路板定位Board positioning
特殊或標準夾具
Special or standard fixture
裝卸方式
Loading and unloading mode
人工方式Manual mode
線路板厚度Circuit board thickness
0.4mm-4mm
安全設置security setting
整機緊急停止開關，主軸緊急停止開關，主軸馬達 過熱和伺服馬達過載檢測 Emergency stop switch of the whole machine,Spindle emergency stop switch,spindle motor overheating and servo motor overload detection
功率power
0. 3kw
最大轉速Maximum speed
60000r/min
冷卻方式Cooling mode
風冷Air cooling
外形尺寸Overall dimension
720*600*600MM
重量weight
135KG
