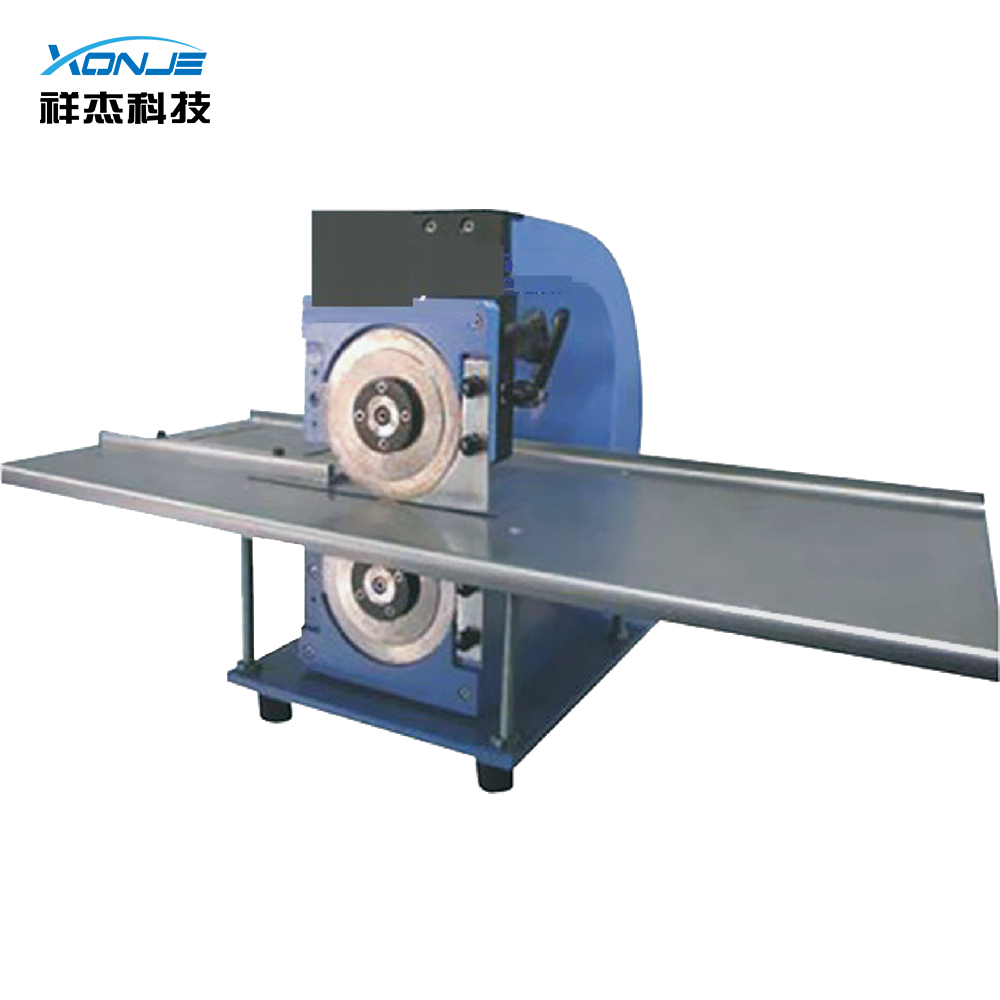

Features
1 .Simple operation and fast speed.
2. The sliding speed of the round knife can be adjusted.
3. Minimize the internal stress generated during cutting to avoid tin cracking.
4. The round knife can be re-ground and reused many times.
5. Any PCB board with V-Cut can be applied to this machine.
Technical parameter
|
分板長度 Maximum cut-board length |
不受限制 Unrestricted |
|
分板速度 Board splitting speed |
0-400mm/s |
|
分板厚度 Board thickness |
1.0-3.5mm |
|
使用電壓 Working voltage |
220V AC 500W |
|
機(jī)器重量 Machine weight |
25kg |
|
外形尺寸 Dimensions(L*W*H) |
450*300*400MM |
|
加平臺的尺寸 Added platform size(L*W*H) |
2400*550*400MM |
