Features

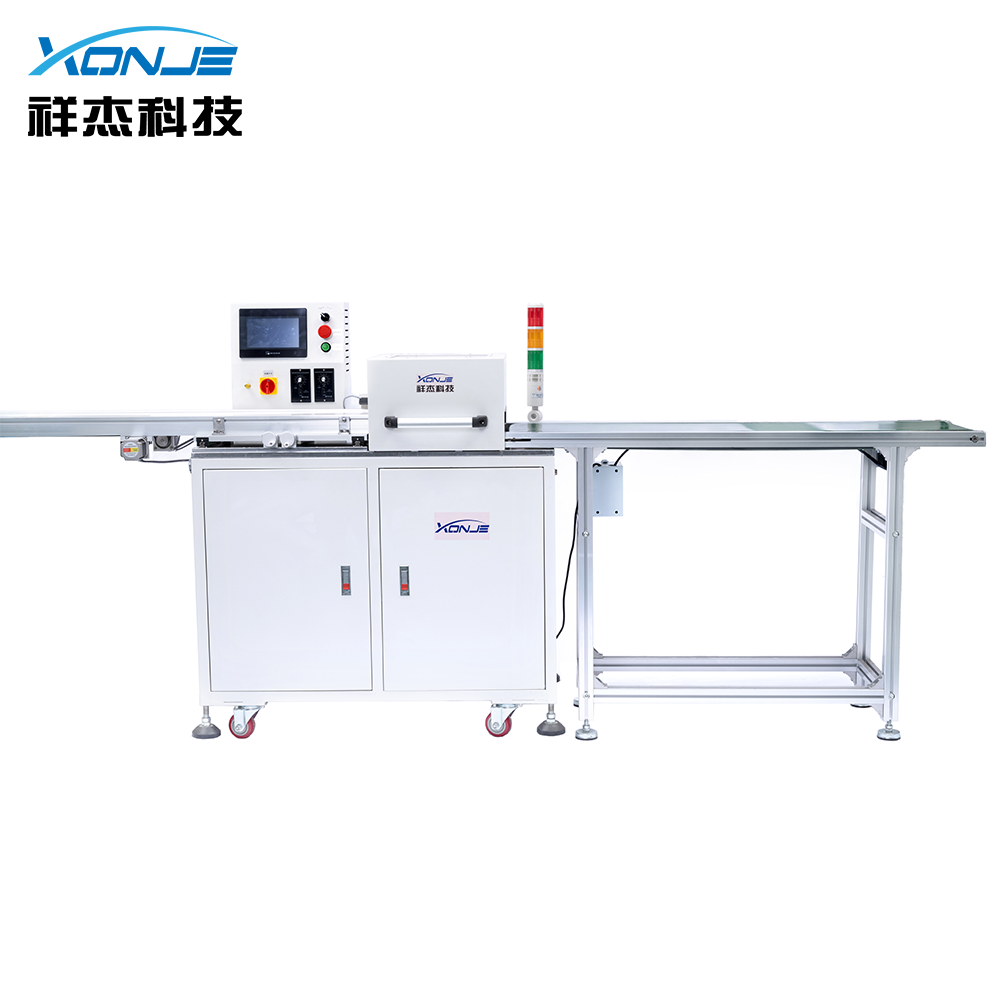

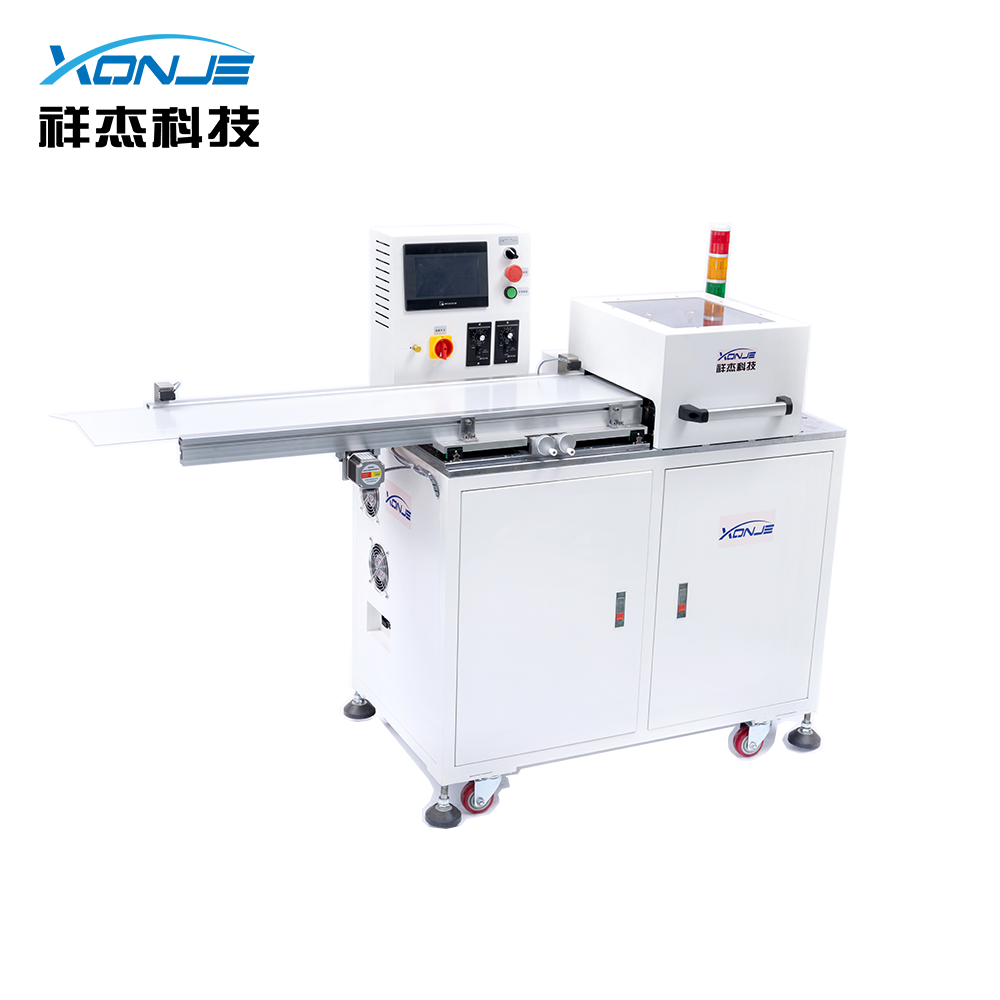

The fully automatic multi-blade splitting model V slot splitting machine further improves the splitting quality; for cutting aluminum substrates (300-1500MM), copper substrates, FR4, and fiberglass boards, they are clean and free of burrs., The splitting machine can be connected to the assembly line to realize automatic splitting without manual placement; the split and cut boards are transported away through the assembly line, which greatly saves manpower. When changing the product, you can directly exchange the die part without manual adjustment of the knife, which greatly saves time.

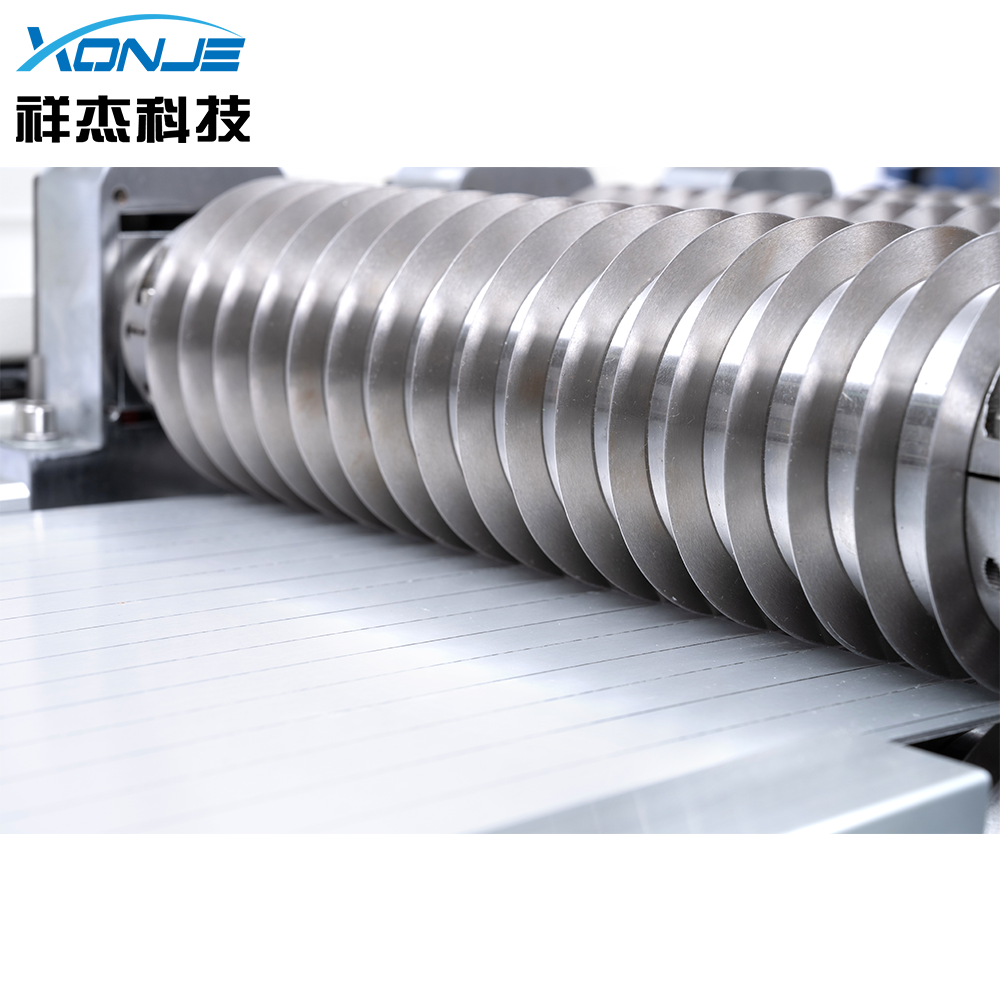

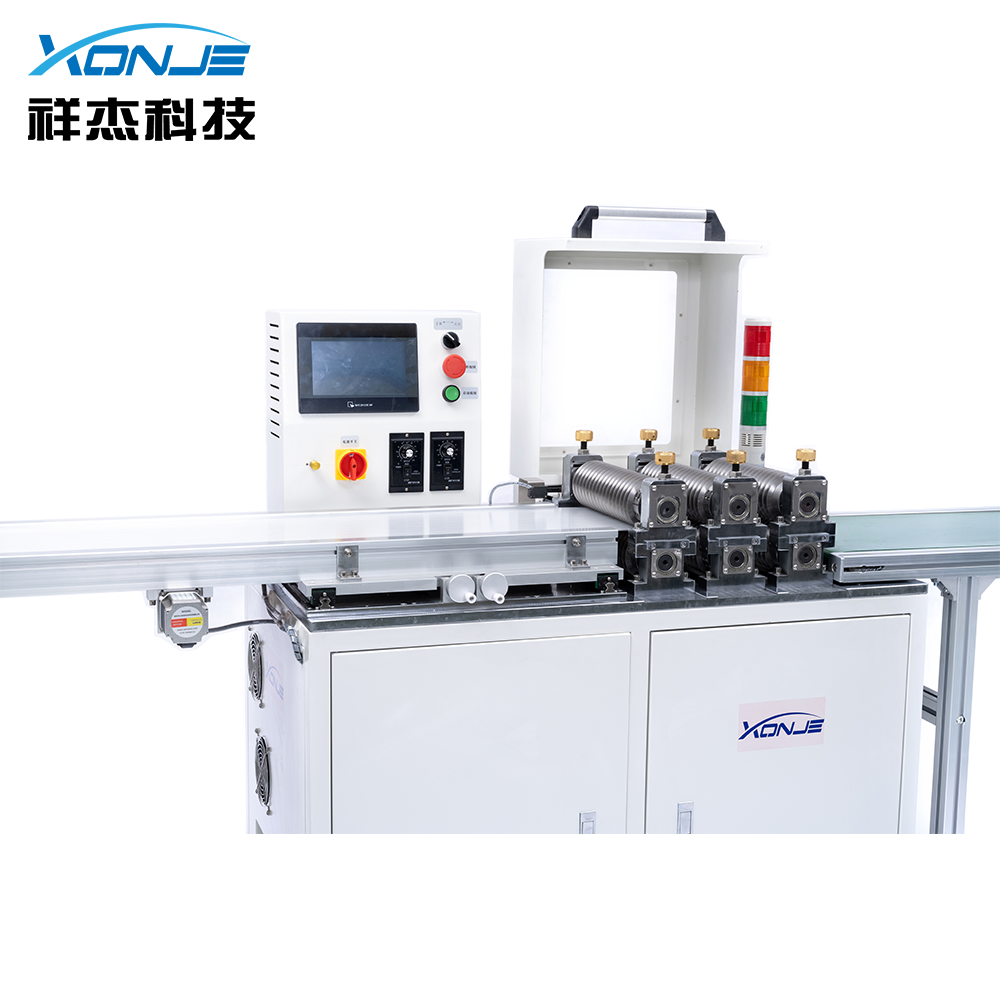

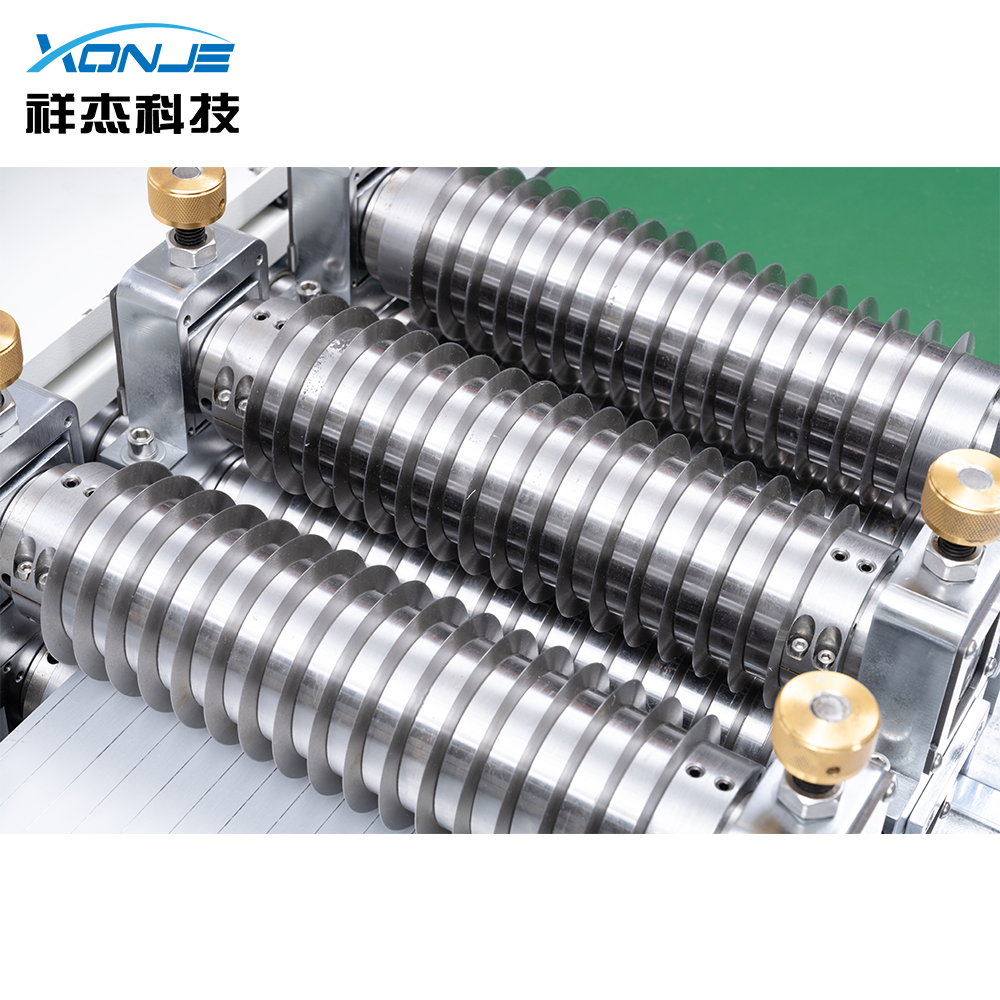

1 .The equipment is used for multi-group and multi-knife automatic board splitting, and the lamp strip machine with a width of more than 10MM can be quickly changed, and the whole board can be divided at one time, which is more than 20 times the efficiency of the traditional splitting machine;
2. The electrical control part can be selected in the man-machine interface, which is convenient to open or shield;
3. Human-computer interface, light curtain form and acrylic cover are used on the table to ensure safety;
4. There is a dust collecting tray under the splitting knife mold (a dust collector can be installed according to customer requirements);
5. Floor-standing structure is adopted as a whole;
6. The frame of the automatic line equipment adopting square steel welded frame,sheet metal sealing plate.surface baked steel paint;
7. The work surface of the equipment is made of 45# steel plate or AL6061 aluminum plate, and the surface is plated/oxidized;
8. Cutting material: fiberboard, aluminum substrate, copper substrate;
9. Tool life: more than 500,000 times;
10. Data monitoring system: boot time monitoring, capacity monitoring, equipment failure information and automatic rejection system, etc.
Technical parameter
|
型號(hào) Model |
XJVC-5LA |
XJVC-5LB |
XJVC-5LC |
|
刀組數(shù)量 Number of knife sets |
lset |
2sets |
3sets |
|
最大分板長(zhǎng)度 Maximum cut-board length |
不受限制Unrestricted |
||
|
分板速度 Board splitting speed |
0-400mm/s |
||
|
分板厚度 Board thickness |
1.0-3.5mm |
||
|
使用電壓 Service voltage |
220V |
||
|
機(jī)器重量 Machine weight |
160kg |
195kg |
195kg |
|
外形尺寸 Dimensions(L*W*H) |
1180*500*1200MM |
1300*600*1200MM |
1300*600*1200MM |
|
外置輸送帶 Dimensions after adding conveyor bett(L*W*H) |
|
1300*600*1200MM |
1300*600*1200MM |
